10.8 Table 8: Overshoot/Undershoot Specification for Data, Strobe, and Mask Pins
PARAMETER
Maximum peak amplitude allowed for overshoot
Maximum peak amplitude allowed for undershoot
The area between the overshoot signal and VDD
must be less than or equal to Max. area in Figure 4
The area between the undershoot signal and GND
must be less than or equal to Max. area in Figure 4
DDR500
1.2 V
1.2 V
1.44 V-nS
1.44 V-nS
SPECIFICATION
DDR400
1.2 V
1.2 V
1.44 V-nS
1.44 V-nS
DDR333
1.2 V
1.2 V
2.25 V-nS
2.25 V-nS
VDD
Overshoot
5
4
3
2
1
0
-1
-2
Max. area
Max. amplitude = 1.2V
-3
-4
-5
Max. amplitude = 1.2V
GND
0
0.5 1.0 1.42 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 5.68 6.0 6.5 7.0
Time (nS)
Undershoot

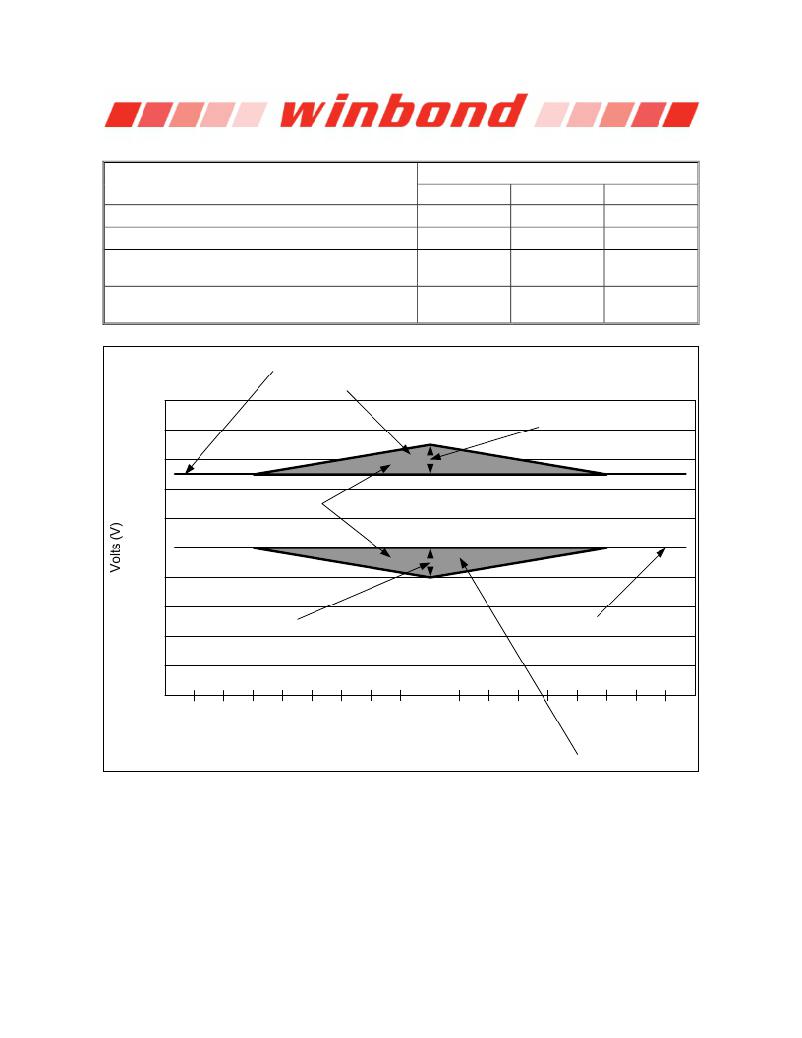

Figure 4: DQ/DM/DQS AC Overshoot and Undershoot Definition
Publication Release Date:Dec. 03, 2008
- 33 -
Revision A08
